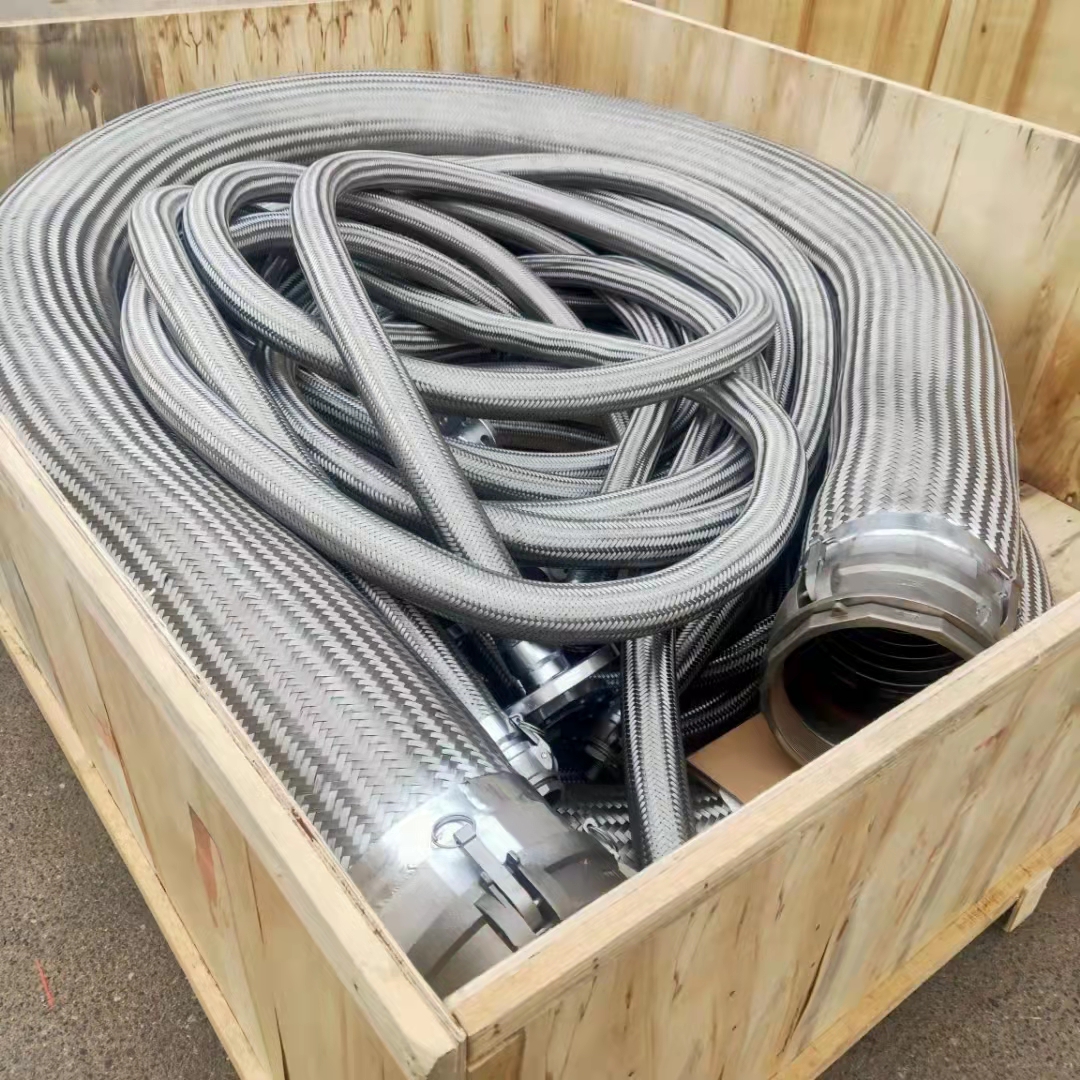

Customized Stainless Steel Flexible Metal Hose

Metal hose is a commonly used pipe fitting in the industry. The temperature is between -30℃ and +180℃. It is mainly used to solve the problems of vibration, displacement, discharge, and compensation for thermal expansion and contraction in the pipeline.

Stainless steel flexible metal hose and fittings can be used widely in systems like water, steam, hot oil and gas, also can be used as protection tubes for wires, cables, optical fibers, automatic instrument signal lines, and instrument wire and cable protection tubes, small-caliber stainless steel metal hoses are used for precision electronic equipment and sensor circuit protection, precision optical scale sensor circuit protection, industrial sensor circuit protect. Because it has excellent flexibility, corrosion resistance, high temperature resistance, abrasion resistance, and tensile resistance.

Stainless steel wire braided flexible metal hose are utilized for conducting liquids, compensating the problems originated from installation,absorbing vibrations and expansions. Flexible Stainless steel wire braided metal hoses may be strengthened by double braiding in order to increase their resistance to pressure and environmental conditions. It is also possible to reinforce them by springs with different wire-thicknesses or by strip spiral to lengthen their service life for more severe environmental conditions.

Outer Core: Braided Stainless Steel Layers:
* Purchase corrugated core hose with no layers, single or double braided
* Flexible metal hose outer braid layers made from 304 stainless steel
2. Connection: flange/thread/quick coupling, also can be customized

material :Carbon Steel or Stainless Steel
